Closeloop Load Cell Sensor Automatic Tension Control Thermal Paper Rolls 80x80mm Slitting Machine

  • >=1 Sets
    $9,500.00
Model Number:
JT-SLT-900
Power(W):
2.95K
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$0.01 /Sets | 1 Sets (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Type:
Slitting Rewinder
Dimension(L*W*H):
1900mm*1700mm*1500mm
Weight:
1200Kg
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Applicable Industries:
Hotels, Garment Shops, Restaurant, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company, Banks
Condition:
New
Computerized:
Yes
Place of Origin:
Jiangsu, China
Brand Name:
Jota Machinery
Voltage:
380V
Certification:
CE
Production Capacity:
110m/min
Item:
Thermal Paper Rolls 80x80mm Slitting Machine
Application:
POS Paper, Cash Register Paper, CAD Paper, NCR Paper, ECG Paper
Web Width:
900mm
Max. Unwinding Diameter:
1000mm
Max. Rewinding Diameter:
160mm
Min. Slit Widths:
25mm
Max. Production Speed:
110m/min
Rewinding:
Surface
Main Power:
2.95Kw
Tension Control:
Fully Automatic
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Closeloop Load Cell Sensor Automatic Tension Control Thermal Paper Rolls 80x80mm Slitting Machine is packaged by stretch film & wooden case.
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description

Closeloop Load Cell Sensor Automatic Tension Control

Thermal Paper Rolls 80x80mm Slitting Machine





Features


Item

Closeloop Load Cell Sensor Automatic Tension Control Thermal Paper Rolls 80x80mm Slitting Machine

Rewinding type

Surface

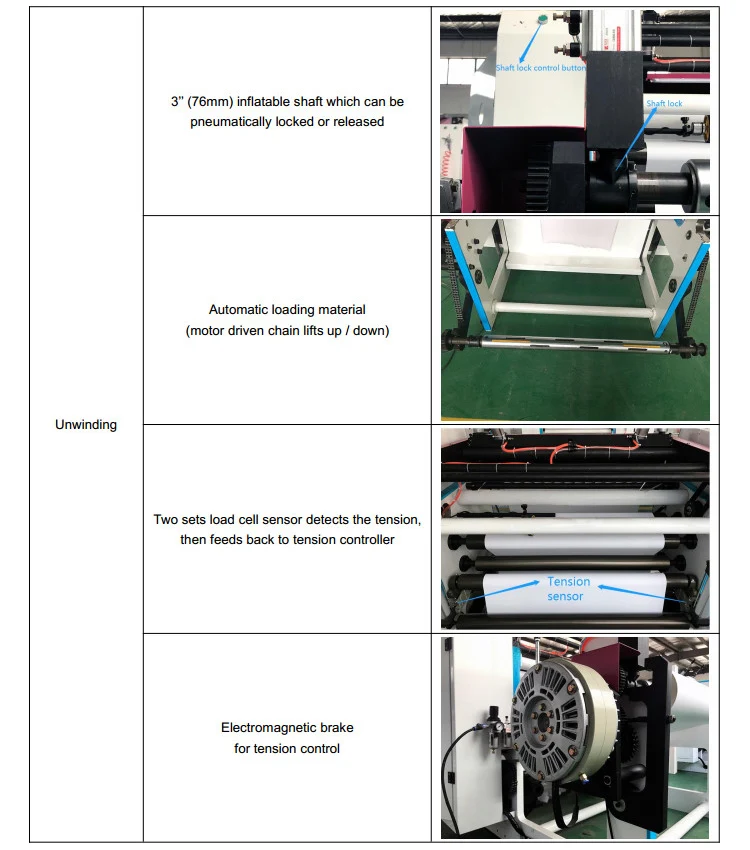

Unwinding

3’’ (76mm) inflatable shaft which can be pneumatically locked or released

Automatic loading material (motor driven chain lifts up / down)

Two sets load cell sensor feeds back web tension to tension controller

Electromagnetic brake for tension control

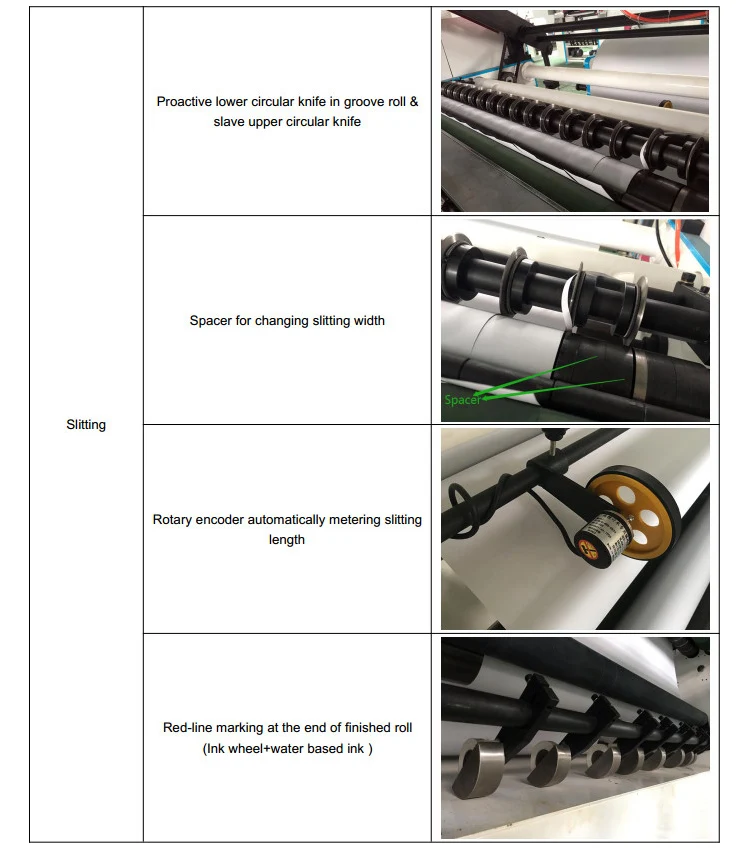

Slitting

Proactive lower circular knife in groove roll & slave upper circular knife

Spacer for changing slitting width

Rotary encoder automatically metering slitting length

Red-line marking at the end of paper roll

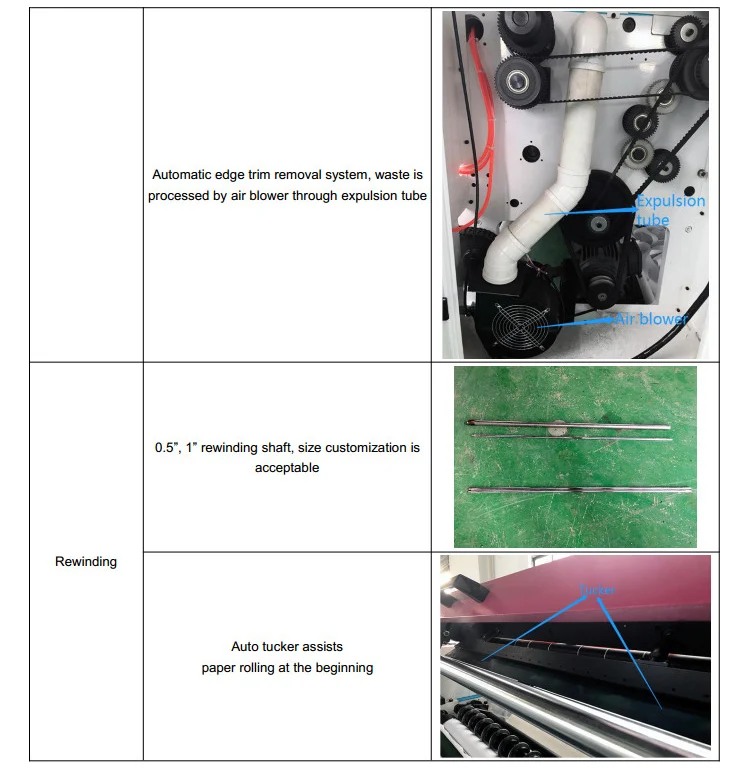

Automatic edge trim removal system, waste is processed by air blower through expulsion tube

Rewinding

0.5”, 1” rewinding shaft, size customization is acceptable

Auto tucker assists paper rolling at the beginning

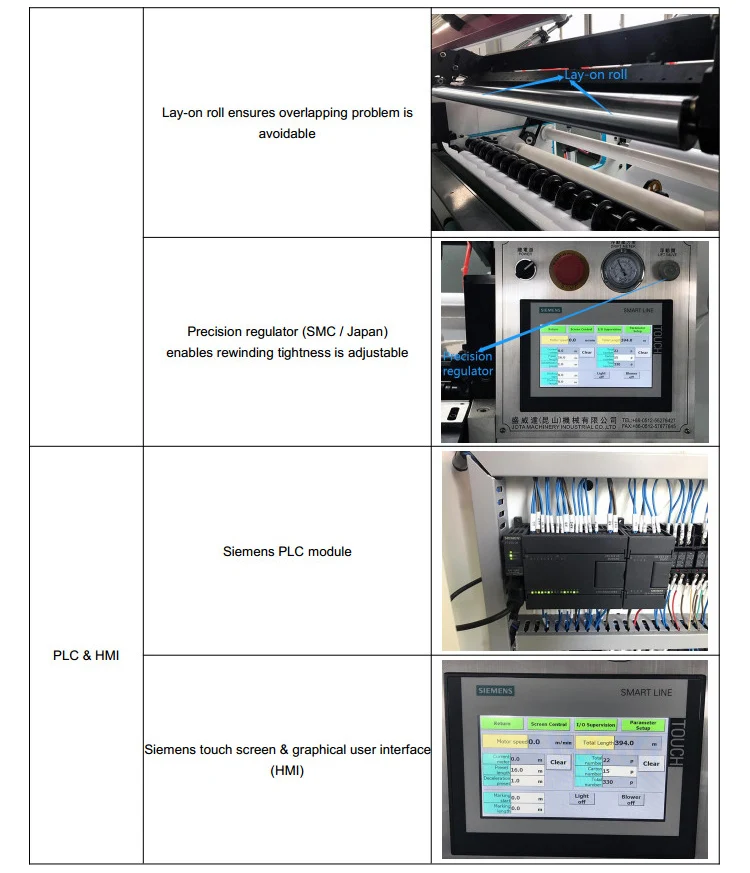

Lay-on roll ensures overlapping problem is avoidable

PLC & HMI

Siemens PLC

Siemens touch screen & graphical user interface (HMI)

Rewinding tension control (manual cluth)

Automatic stop after slitting preset length

Schneider low voltage electrical appliances

Emergency switch










Optional Parts





Parameters



Web Width

900mm

Max. Unwinding Diameter

1000mm

Max. Rewinding Diameter

160mm

Min. Slitting Width

25mm

Max. Production Speed

110m/min

Main Power

2.95Kw

Weight

1100Kg

Dimension

2000mm*1700mm*1500mm (L*W*H)



Certificate

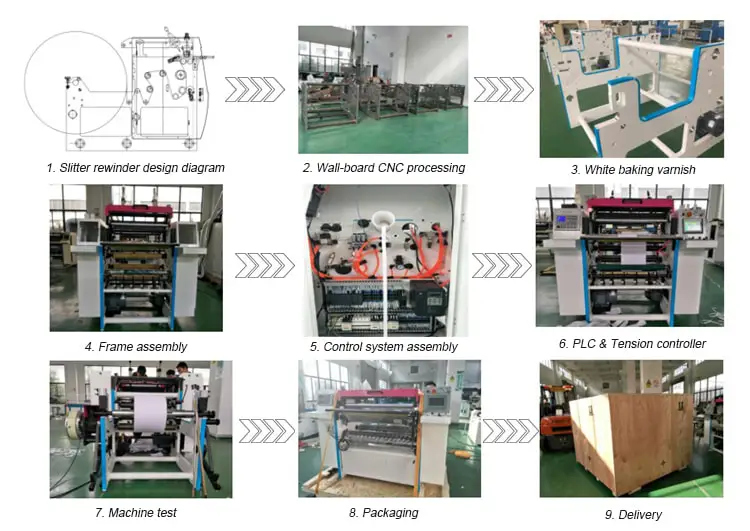

Product Processing


Packaging & Shipping

Packing Details: Closeloop Load Cell Sensor Automatic Tension Control Thermal Paper Rolls 80x80mm Slitting Machine is with flexible wrapping and wooden case. With the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Menu, Inverter Menu and Electrical Schematic Diagram.
Delivery time : Within 7 working days after received 30% deposit receipt by T/T.

Our Services

1. What's payment terms & trade terms you accept?
Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment, we usually offer FOB Ningbo price. We also accept other way like L/C, Western Union, and do CFR & CIF etc.
2. Does it easy to operate and what can I do if it doesn't work?
First, our machine is stable and easy to operate by one man, what you do is just learn some basic thing like loading the jumbo roll paper, start the machine and cutting the paper. And we will sent you manual and video, we suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong, you can call us, video-chat, Email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
3. If the machine's spare parts broken, where can I get?
We will give you the spare parts which is vulnerable, and some critical parts like gear box, our quality is good, in case it is broken within one year, we will sent you for free.
